Building Equipment That Is More Stable, Easier to Use and Ready for Long-term Production
Structure, hydraulics, controls and manufacturing quality determine whether equipment is ready for long-term production.
Equipment Schematic
Click the highlighted areas to learn more about each part.
Mechanical Structure
Frame layout, main cylinder, slide, guiding, prestress, die area and billet handling.

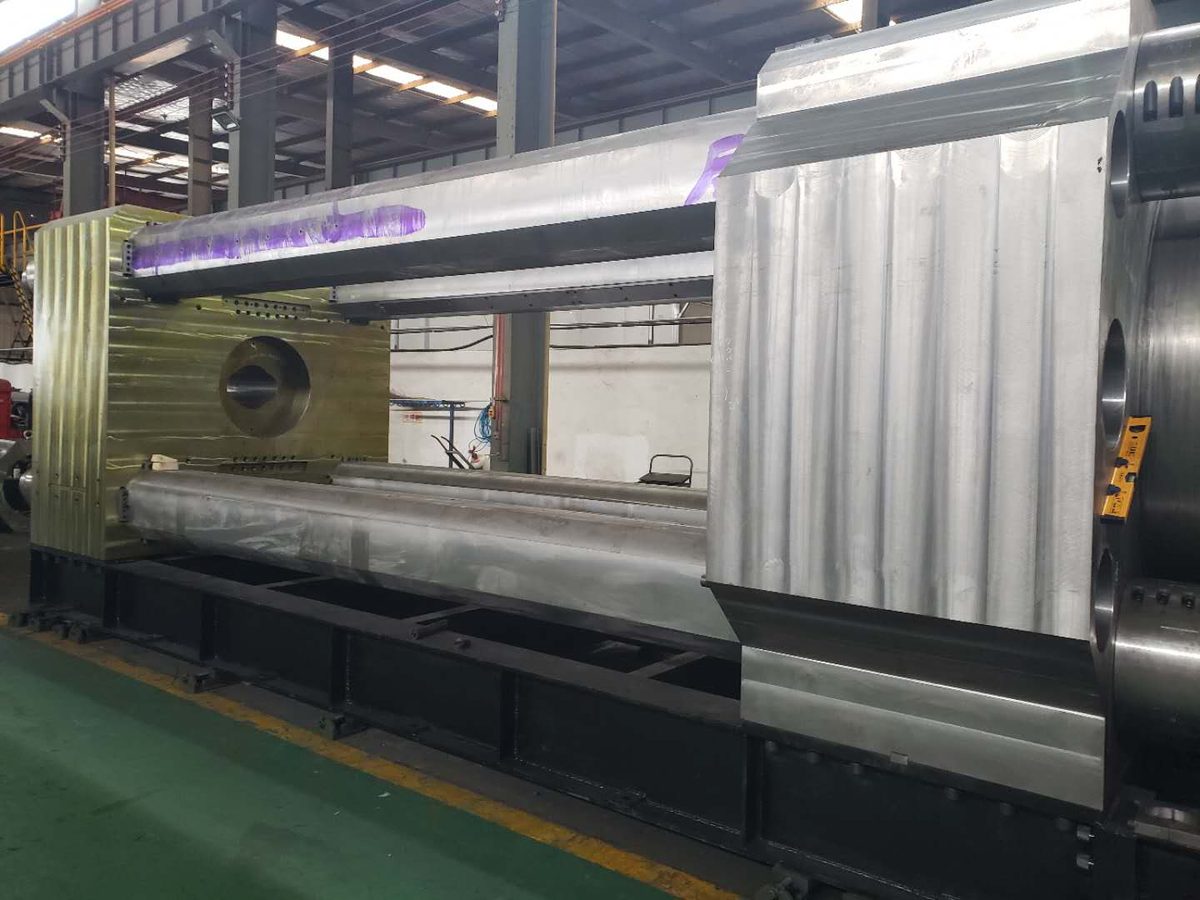

Prestressed Frame Structure
Long-term rigidity under repeated load cycles.
Four-column Horizontal Layout with Top-mounted Tank
Compact arrangement for installation and maintenance access.
Piercing Beam and Movable Crossbeam
Four-point positioning with adjustable centre alignment.

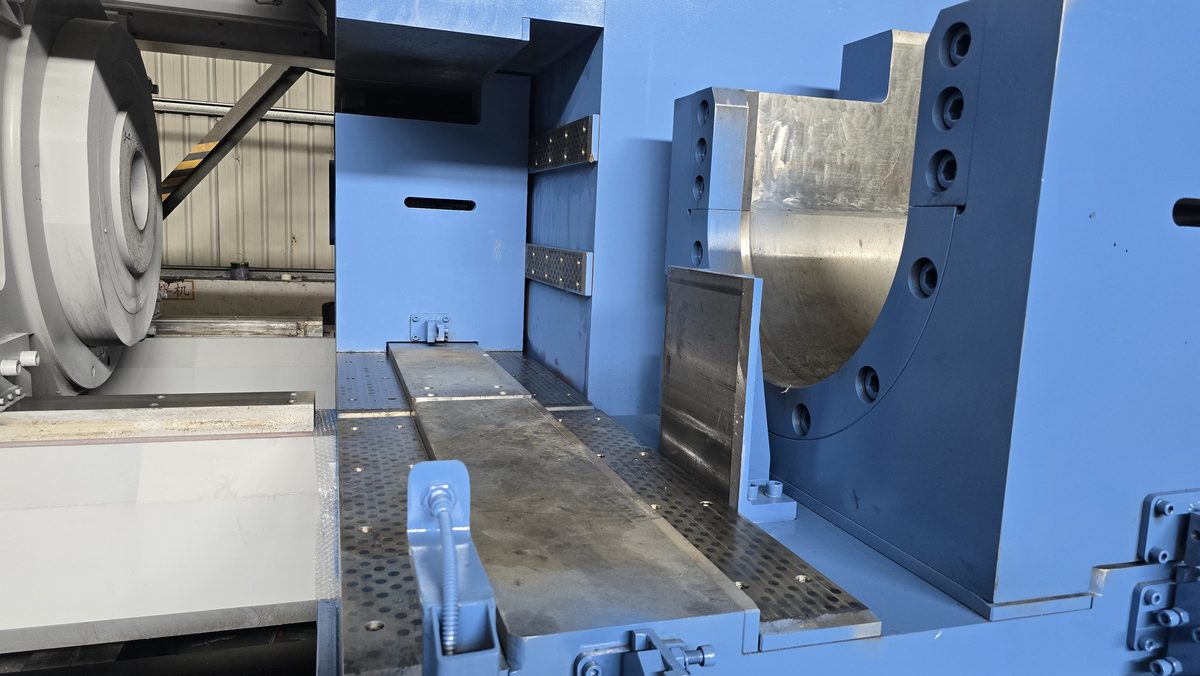

Quick Die-change Mechanism
Reduce die-change downtime and waiting time.
Butt Shear Mechanism
Reliable residual handling at the end of extrusion.

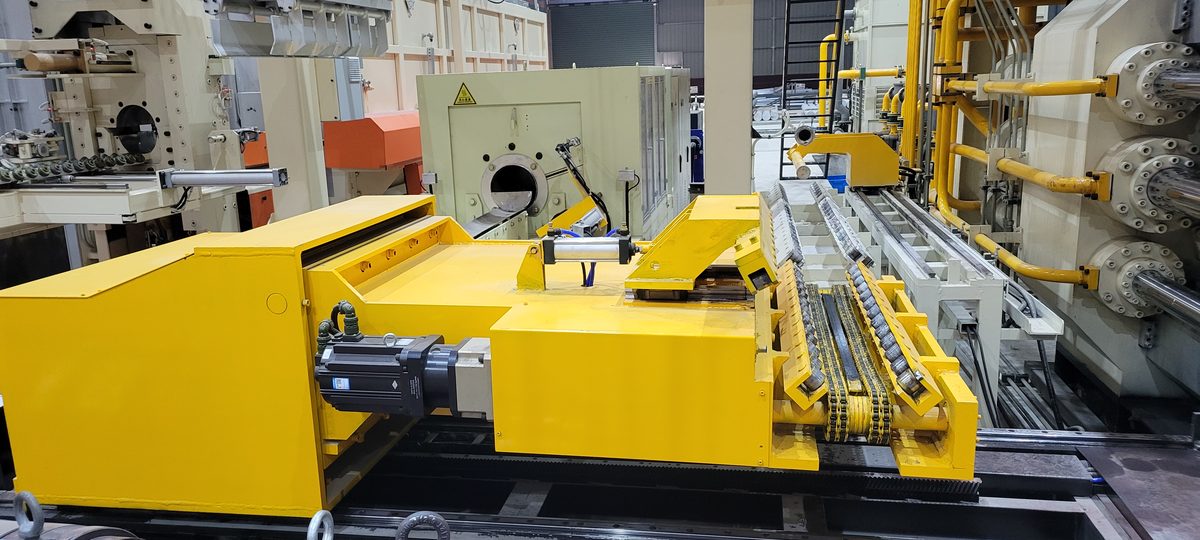

Linear Billet Loading Carriage
Reliable billet transfer into the container.
Hydraulic Systems
Hydraulic circuit, pressure control, speed control and servo drives.

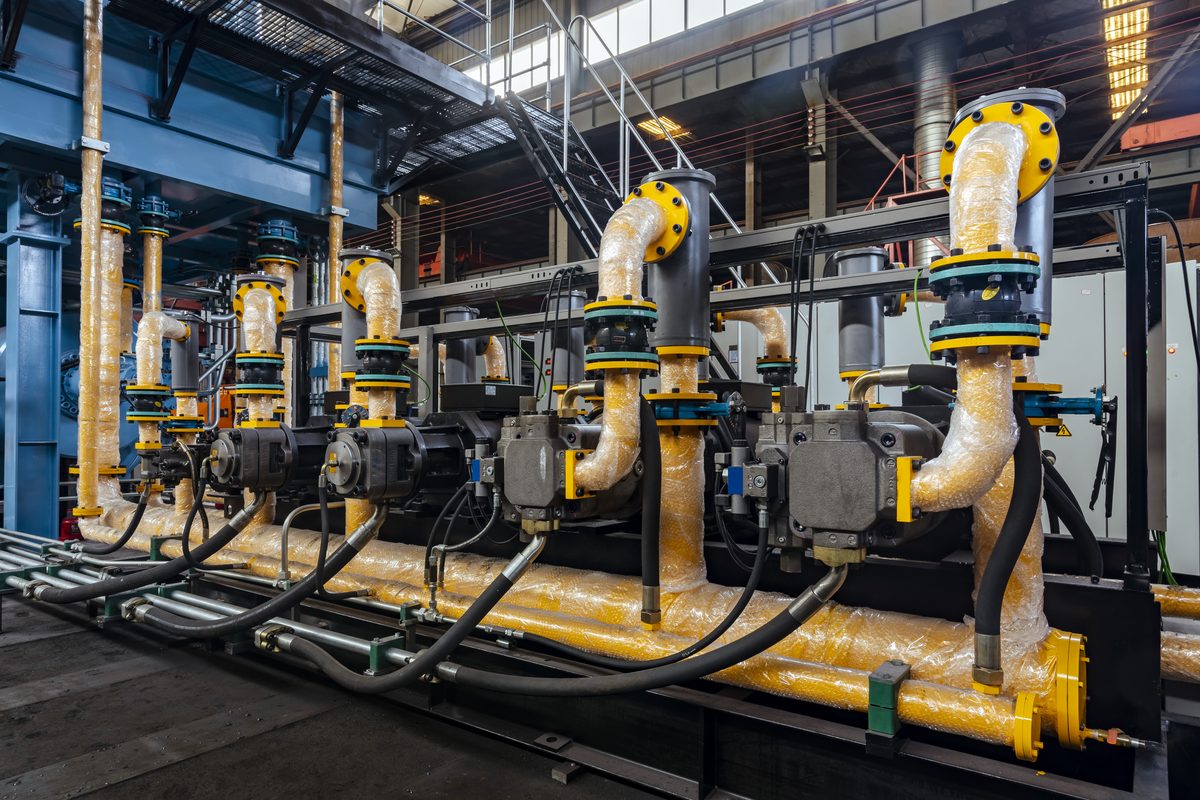

Servo-driven Energy-efficient Hydraulic System
Reduced energy use under variable load.
Two-way Cartridge Valve Circuit
Stable performance, high flow and low temperature rise.
Hydraulic Tank-top Assembly
Clean oil and stable temperature.
Piping System
Engineered layout for serviceability.
Electrical Controls
PLC, HMI, parameters, alarms, diagnostics and data interfaces.
Electrical Control System
Constant and variable speed control with real-time monitoring of main parameters.
Fault Alarm and Self-diagnosis
Protect operators and equipment through alarm and diagnosis functions.
Industrial Data Interface
Supports data access and remote monitoring interface standards.
Manufacturing & Assembly
CNC, critical components, assembly, testing and acceptance.
Critical Component Manufacturing
In-house machining of frames, cylinders and slides.
Precision Assembly and Testing
Verify against technical and acceptance requirements.
Manufacturing Progress and Quality Milestones
Traceable checkpoints during production.
Manufacturing & Testing
Production, inspection and testing records.
Machining
Assembly
Inspection

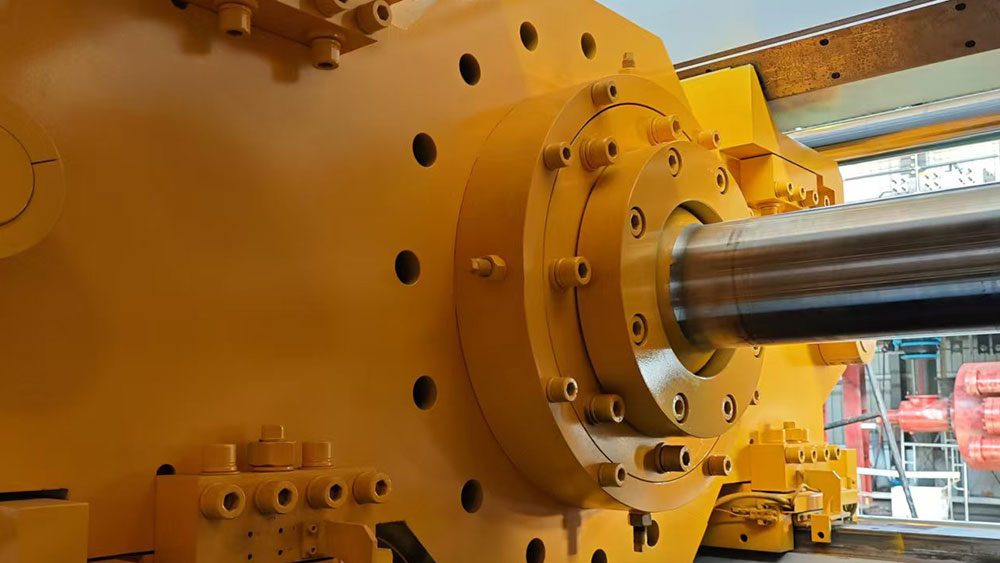

Testing
